Mythic 18 Vet Haematology Analyser

THE ULTIMATE TECHNOLOGY IN HAEMATOLOGY

The Mythic 18 Vet is a fully automated 18 parameter veterinary haematology analyser. With its compact size and lightweight design, the Mythic 18 Vet is ideal for use as a veterinary specific benchtop analyser in the smallest of veterinary practices or clinics. It is a quick and efficient haematology analyser capable of performing 60 tests per hour and can be used on samples from 10 different species. It requires a low level of maintenance and just a 10μl sample size.

Features

Quick and easy to use
Fully Automated
Compact and lightweight
Colour Touchscreen
60,000 patient memory*
Built-in reagent pack
Multi-language setting (11 languages)
10 Species Available
60 second analysis time
Low power consumption
Easy maintenance *Expanded from 1,500 with a USB

Ten Species Available

The Mythic 18 Vet Haematology Analyser is capable of providing an accurate, 18 parameter haematology test for the following animal species:

Dog
Cat
Horse
Cow
Pig

Sheep
Goat
Rabbit
Mouse
Rat

Simultaneously Tests up to 18 Parameters

The Mythic 18 Vet is able to test the following 18 haematology parameters simultaneously:

Leucocyte Parameters	Erythrocyte Parameters	Thrombocyte Parameters
WBC – White Blood Cells	RBC – Red Blood Cells	PLT – Platelet
LYM% – Lymphocytes Percentage	HGB – Haemoglobin	MPV – Mean Platelet Volume
LYM# – Total Lymphocytes	HCT – Haematocrit	PDW* – Platelet Distribution Width
MON% – Monocytes Percentage	MCV – Mean Corpuscular Volume	PCT* – Thrombocrit
MON# – Total Monocytes	MCH – Mean Corpuscular Haemoglobin
GRA% – Granulocytes Percentage	MCHC – Mean Corpuscular Haemoglobin Concentration
GRA# – Total Granulocytes	RDW – Red Blood Cell Distribution Width
EOS – Flag

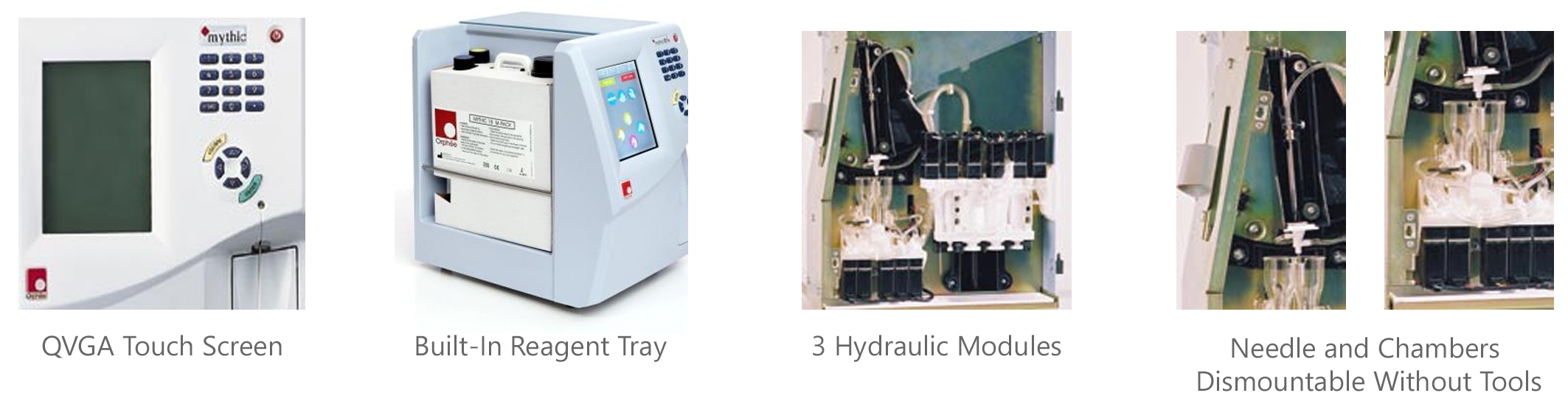

Components of the Mythic 18 Vet

Specifications

Parameters	18 parameters + 3 curves: WBC, LYM% and #, MON% and #, GRA% and #, EOS flag RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PCT, PDW RBC curve, WBC curve, PLT curve
Throughput	60 samples per hour
Sample Volume	10µl
Output	RS232, Ethernet (UDP/IP, TCP/IP protocol) 2 USB ports Centronics port Barcode scanner port
Reagents	Cyanide free (up to 200 tests per pack*)
Printers	External printer Dot matrix printer / thermal printer / monochrome inkjet printer / monochrome laser printer
Power (Voltage & Consumption)	90 to 250 V, 50 to 60 Hz Less 50 VA
Graphic Interface	Menu with icons for direct access to main species
Technology	Impedance (WBC, RBC, PLT) Spectrophotometry (HGB)
User Interface	TFT colour touchscreen Built-in numerical keyboard
10 Species Available	Dog, Cat, Horse, Cattle, Pig, Sheep, Goat, Rabbit, Mouse and Rat. 10 other species can be programmed by the user
Calibration	Automatic or manual
Flags	Pathological flags (programmable), Lab limits (programmable), Reagent alerts, Instrument alerts
Quality Control	Liquid QC material available Table and Levey Jennings graphs
Memory	1500 patient internal memory Mass storage USB up to 60,000 patients
Multi-Language	French, English, Spanish, Portuguese, Italian, German, Chinese
Traceability	Patient identification; Name, Patient Id, Sample Id Daily log Reagent monitoring: lot number, expiry date, volume Service log
